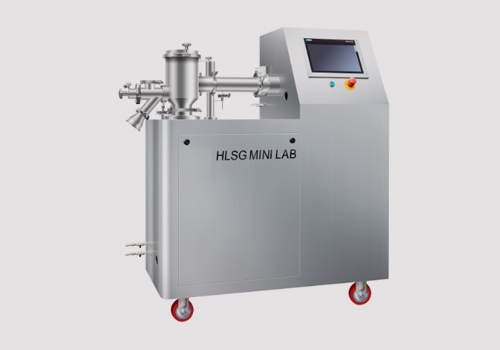

Wet Granulator
Model: G-N1-1-WG
Function: Wet Granulator
The wet granulator can be used for mixing materials. The process is to make the powder wet gradually with the injection of adhesive and the shape of material changes.
The cutter on the horizontal axis of the wall rotates with the mixing blade at the same time, generating eddy current, so that the material is mixed, flipped and collided fully.
When the flipped mass material passes through the high-speed rotating chopper area, it is fully broken into particles by the chopper.
At the same time, the granules extrude, collide, rub, shear and kneading each other in the three-dimensional movement, which makes the granules more delicate.
The equipment can complete the mixing, humidifying and granulating processes at one time, with good granulating effect and no cross infection, meeting the GMP standard.
The whole equipment includes feeding system, mixing system, injection system, cutter system, wet granulating system and control system.
Technical Data
Model
WG-MINI
WG-LAB
WG120
WG200
WG300
WG600
WG900
WG1200
WG1500
Capacity (liters)
120
200
300
600
900
1200
1500
Working Capacity (liters)
1/3/6/10/15
20/40/60/80
Minimum25%-Maximum70%
Motor Power (kw)
3
4/7.5
11
15
18.5
30
45
55
75
Impeller Speed (RPM)
50-1000
25-420
15-220
10-180
10-165
10-130
10-115
10-110
10-97
Chopper Speed (RPM)
300-2900
300-2000
Inverter control maximum up to 2000
Weight (kg)
600
1000
1200
1800
2000
2800
4200
5200
5500
